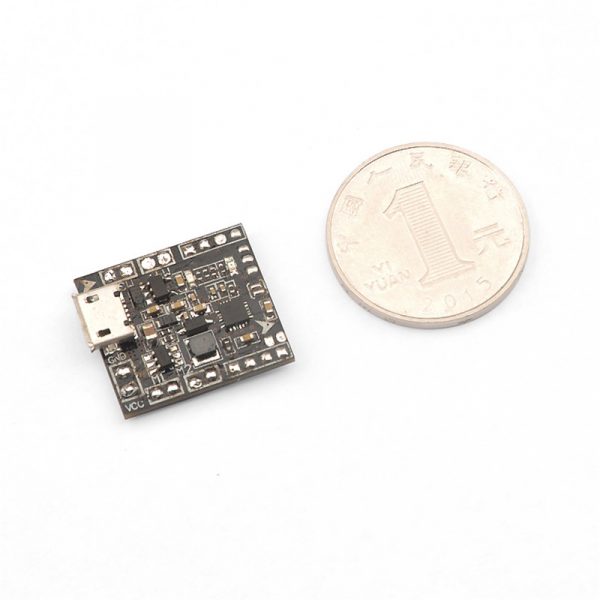

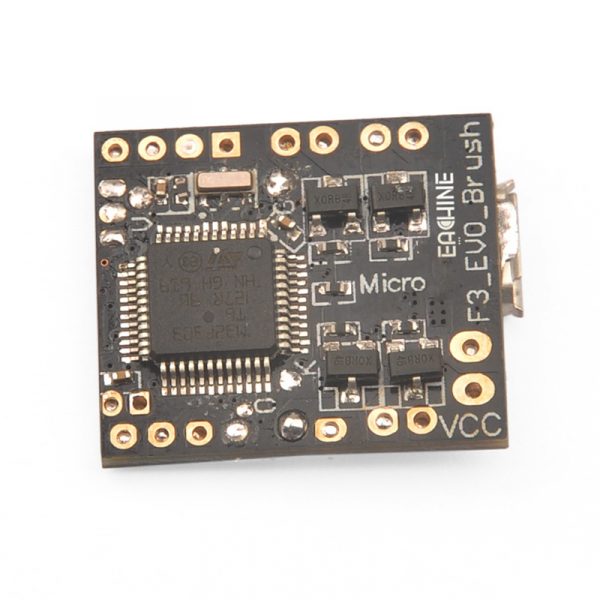

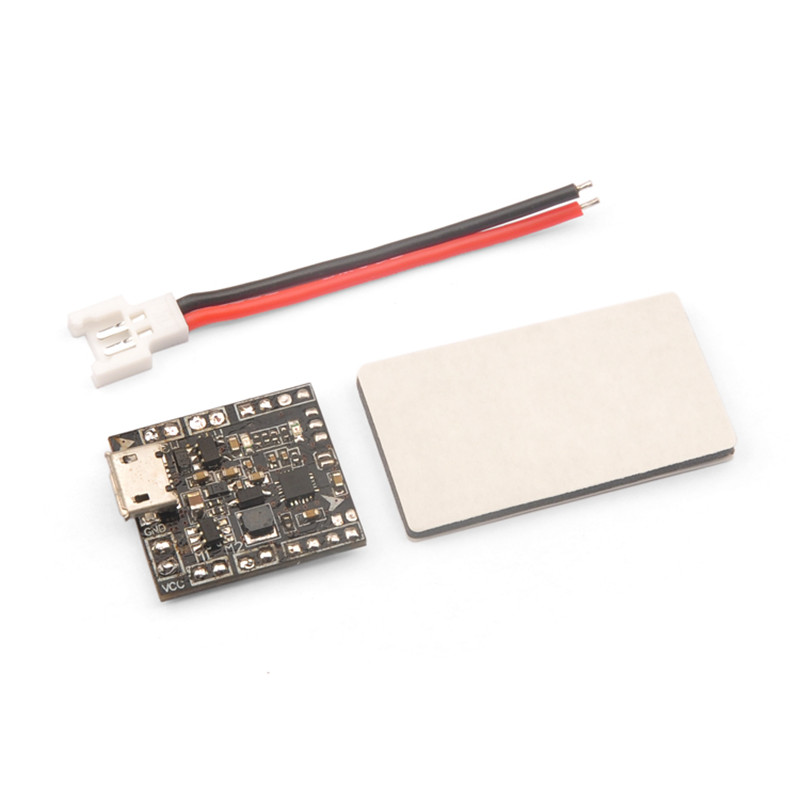

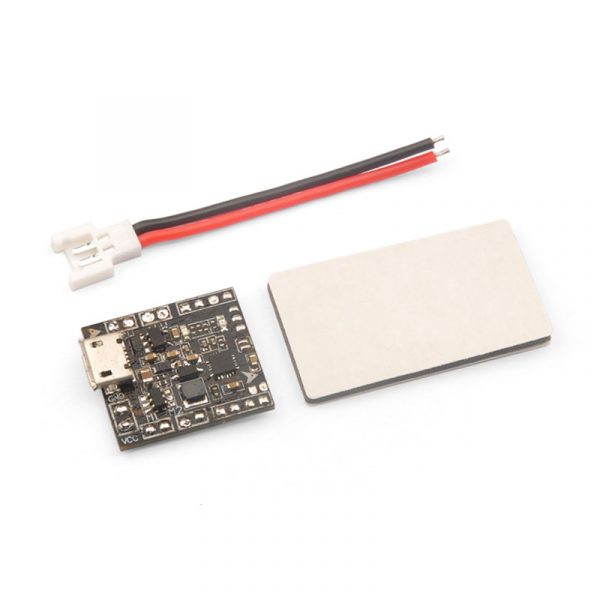

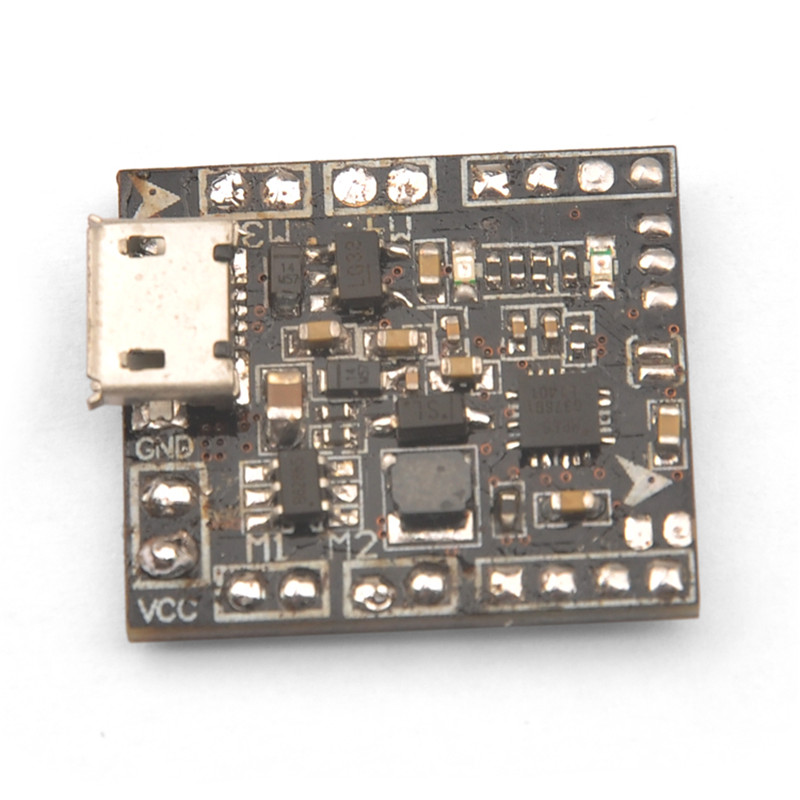

Eachine Tiny 32bits F3 Brushed Flight Controller based on SP RACING F3 EVO for DIY Frames

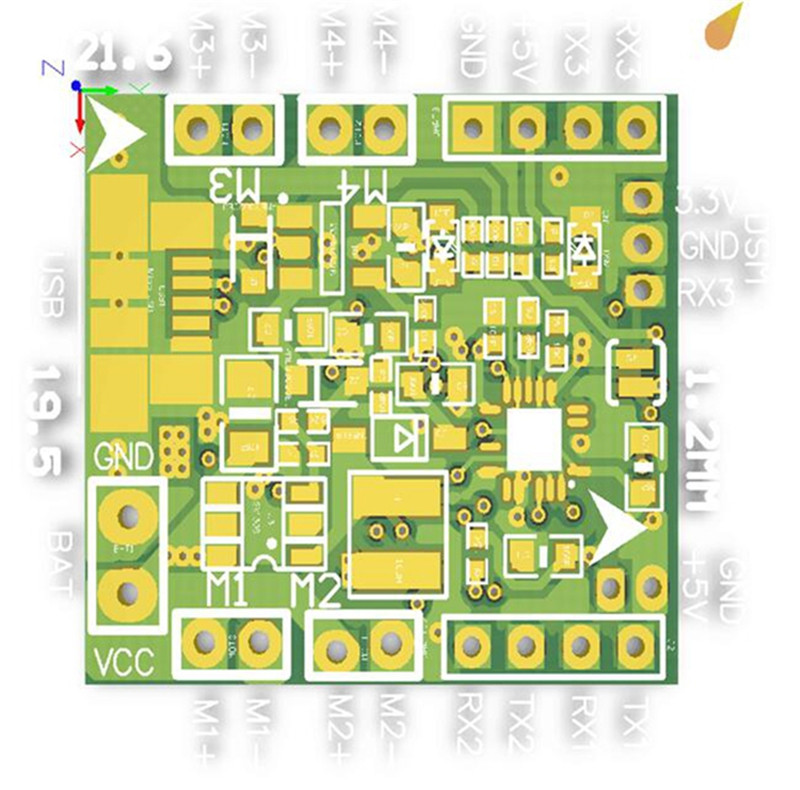

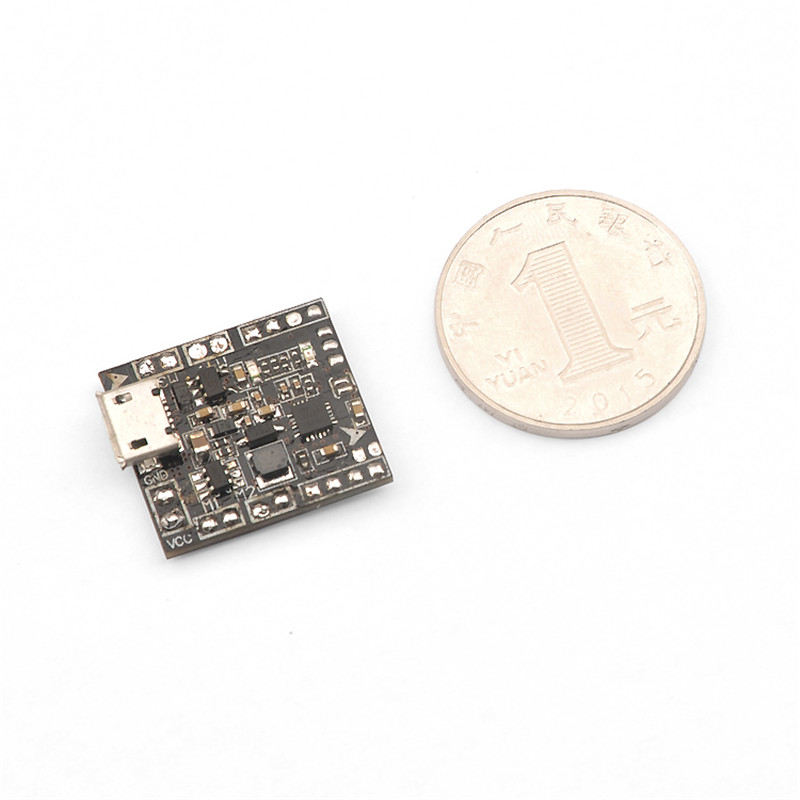

Dimension: 23mm*19.5mm*5mm
Thickness: 1.2mm
Weight: 2g

Features:
– F3_EVO_Brush is in the revision on the basis of  the F3 EVO SP RACING,it is a 32bits brush flight controller based on SP RACING F3 EVO firmware.
– The flight control support 1S (4.2V).
– Independent design of the circuit structure, comes with the Voltage control technology, 1S lipo battery input, the UART1/2/3 output 5V,  DSM port output 3.3V.
– Using STM32F303CCT6 + MPU6500, advanced hardware platform F3 guarantee more stable flight.
– With a large current NMOS transistors, operating current of up to 10A or more. Each Brushed motor is equipped with freewheeling diodes.
– Support for PPM, SBUS, DSM/DSM2/DSMX receiver input signal.
– In support of the world almost all hollow cup motor, including 1020 coreless motor.
