Brand | EACHINE |
---|

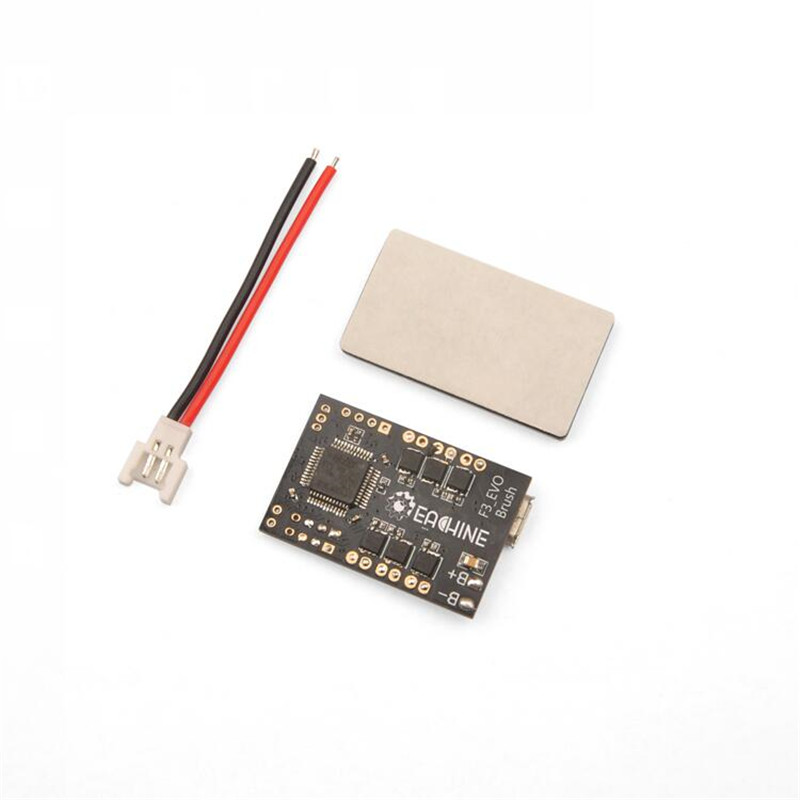

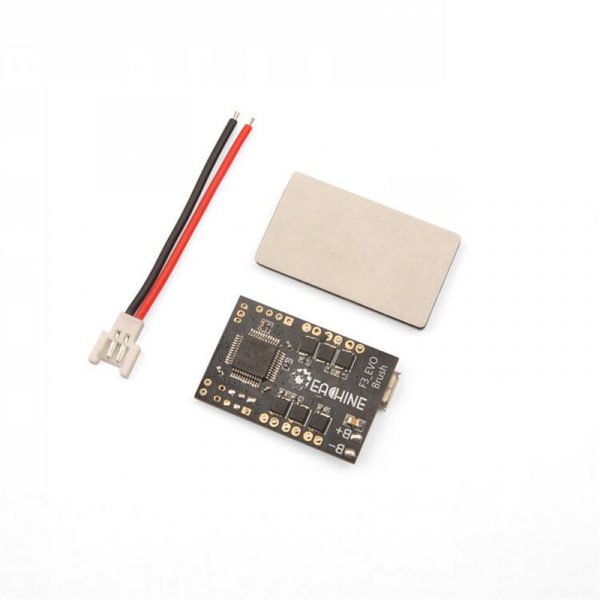

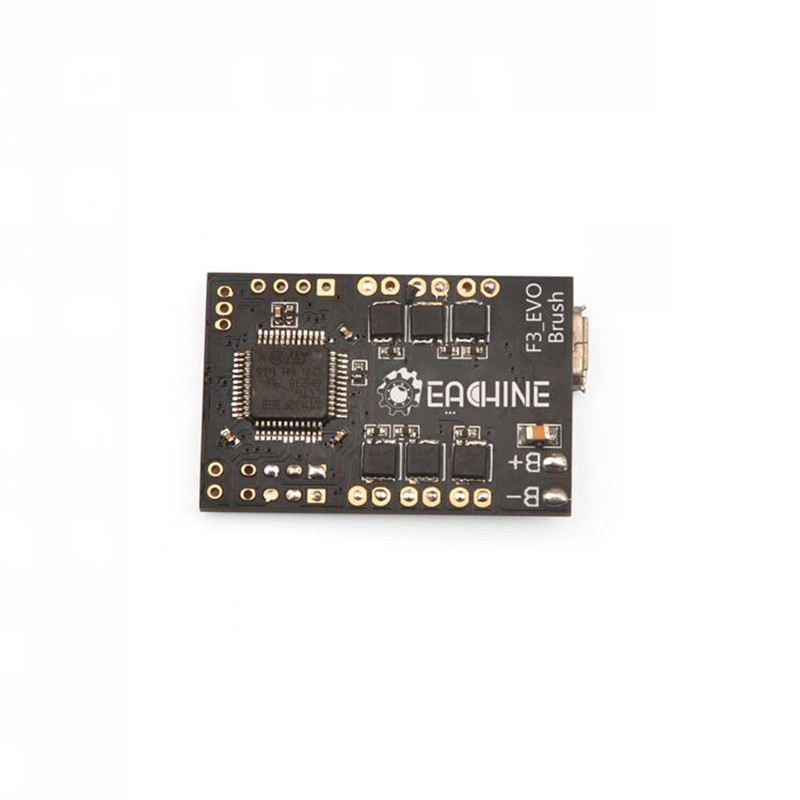

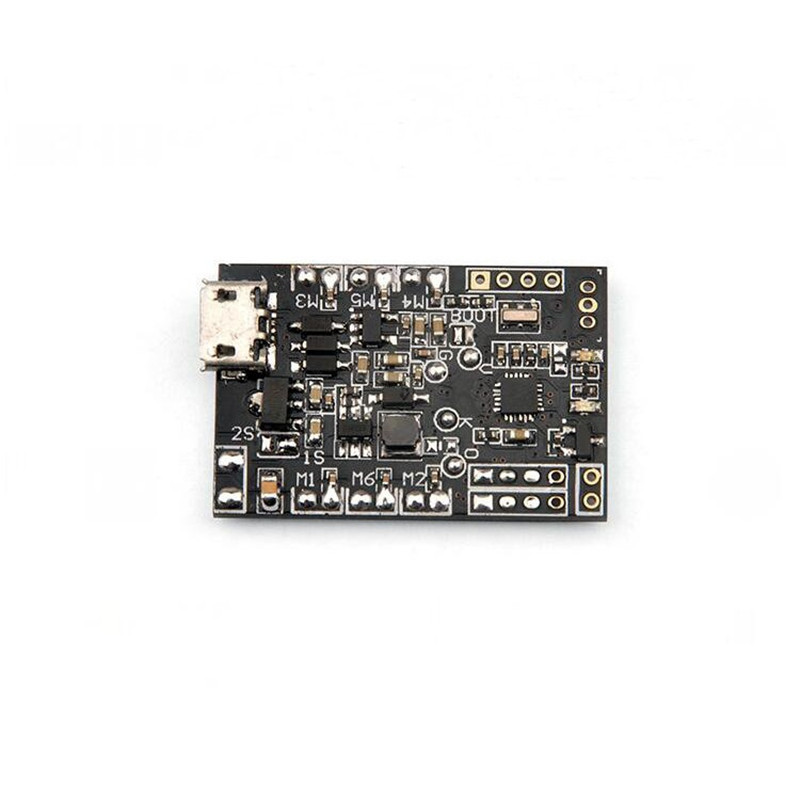

Eachine 32bits F3 Brushed Flight Controller based on SP RACING F3 EVO
$17.99
Dimension: 22mm*32.5mm
Thickness: 1.2mm
Weight: 3g
Features:
– F3_EVO_Brush is in the revision on the basis of the F3 EVO SP RACING,it is a 32bits brush flight controller based on SP RACING F3 EVO firmware.
– The flight control support 1S (4.2V) and 2S (8.4V) power supply, 2S power can bring flying experience more violence.
– Independent design of the circuit structure, comes with the pressure reduction technology, whether it is 1S or 2S power input, UART1/2 output 5V, UART3 output 3.3V
– Using STM32F303CCT6 + MPU6500, advanced hardware platform F3 guarantee more stable flight,support Tricopter/Quadcopter/Hexacopter.
– With a 6-ways large current NMOS transistors, operating current of up to 10A or more. Each machine is equipped with freewheeling diodes.
– With battery voltage detection and buzzer interface.
– In support of the world almost all hollow cup motor, including 1020 coreless motor.Support 6 motor.
– F3_EVO_Brush is in the revision on the basis of the F3 EVO SP RACING,it is a 32bits brush flight controller based on SP RACING F3 EVO firmware.
– The flight control support 1S (4.2V) and 2S (8.4V) power supply, 2S power can bring flying experience more violence.
– Independent design of the circuit structure, comes with the pressure reduction technology, whether it is 1S or 2S power input, UART1/2 output 5V, UART3 output 3.3V
– Using STM32F303CCT6 + MPU6500, advanced hardware platform F3 guarantee more stable flight,support Tricopter/Quadcopter/Hexacopter.
– With a 6-ways large current NMOS transistors, operating current of up to 10A or more. Each machine is equipped with freewheeling diodes.
– With battery voltage detection and buzzer interface.
– In support of the world almost all hollow cup motor, including 1020 coreless motor.Support 6 motor.
Out of stock
